Description
Lecteur de carte sans contact RFID USB
Description:

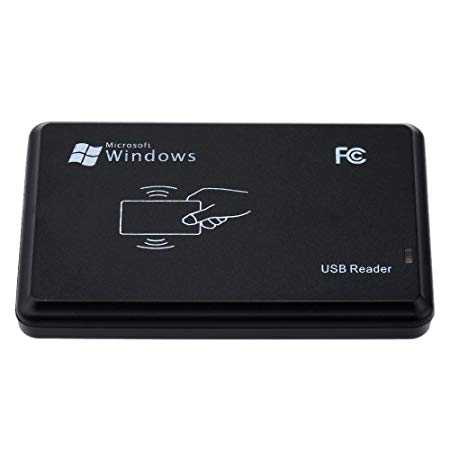

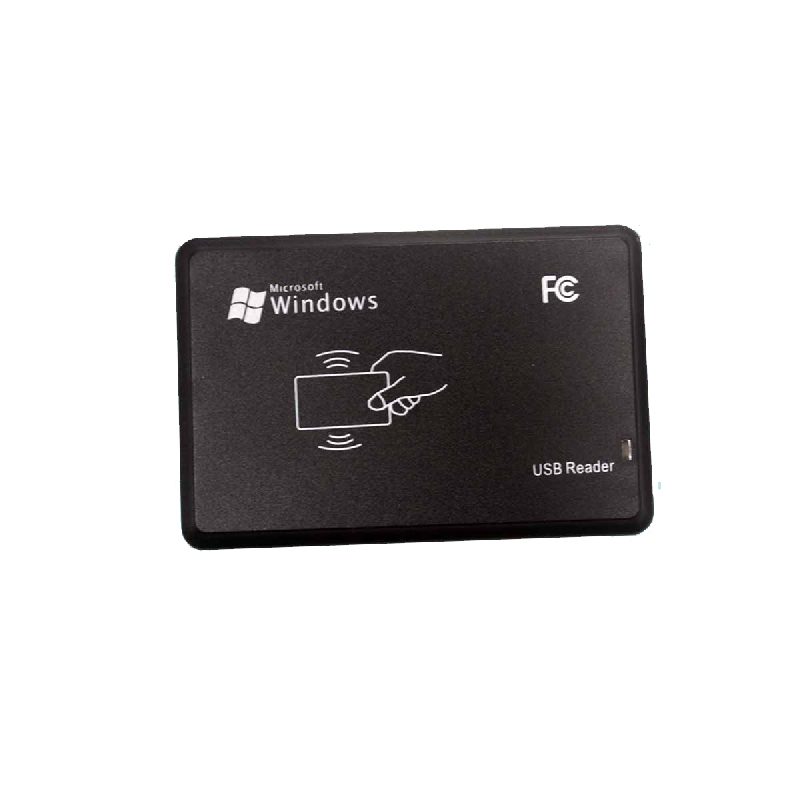

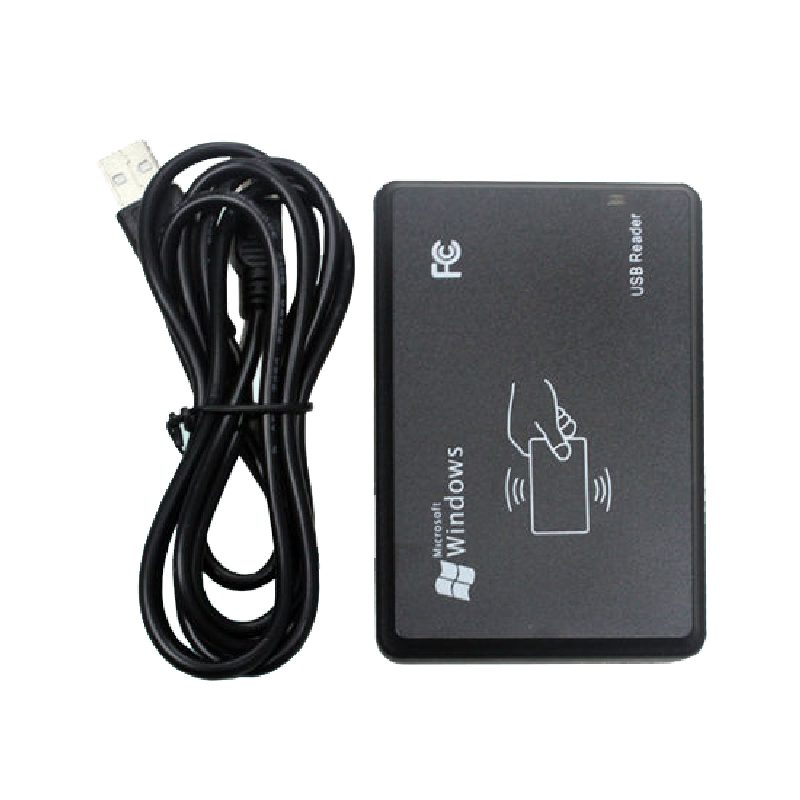

This RFID Card Reader supports USB. Reading distance less than 60mm. R20 is a portable mini RFID Car Reader.
Feature:
POS RFID Card Reader
1) USB plug and play
2)IC\ID\2nd generation identify card can be directly show in text file, word file etc.
Specification:
| Model No | R20 |
| Frequency | 125K or 13.56MHz |
| Protocol | ISO 14443 TYPE A ISO 14443 TYPE B ISO15693 |
| Tag type | ID IC (ISO 14443AB, ISO15693) 2nd Generation Identify Cards |
| Data format | (1) Decimal 3 byte, (2) Decimal 4 byte, (3) Hex 4 byte, (4) Hex 3 byte, (5) last 8 bit, (6) Customizable Data Formatting |
| Reading time | <100ms |
| Reading distance | >60mm |
| Power supply | 5V |
| Communication Interface | USB |
| Operating temperature | -10 degree~ 70 degree |
| Storage temperature | -20 degree ~ +80 degree |
| Relative humidity | Up to 90% |
| Dimension | 10.8cm×7.8cm×2.8cm |
| Weight | 120g (including cable) |
