Douchette code barre 2D

Douchette code bare 2D CCD USB

Comparer
UGS : ODT-BS2008 Catégorie : Étiquettes : , , ,

Description

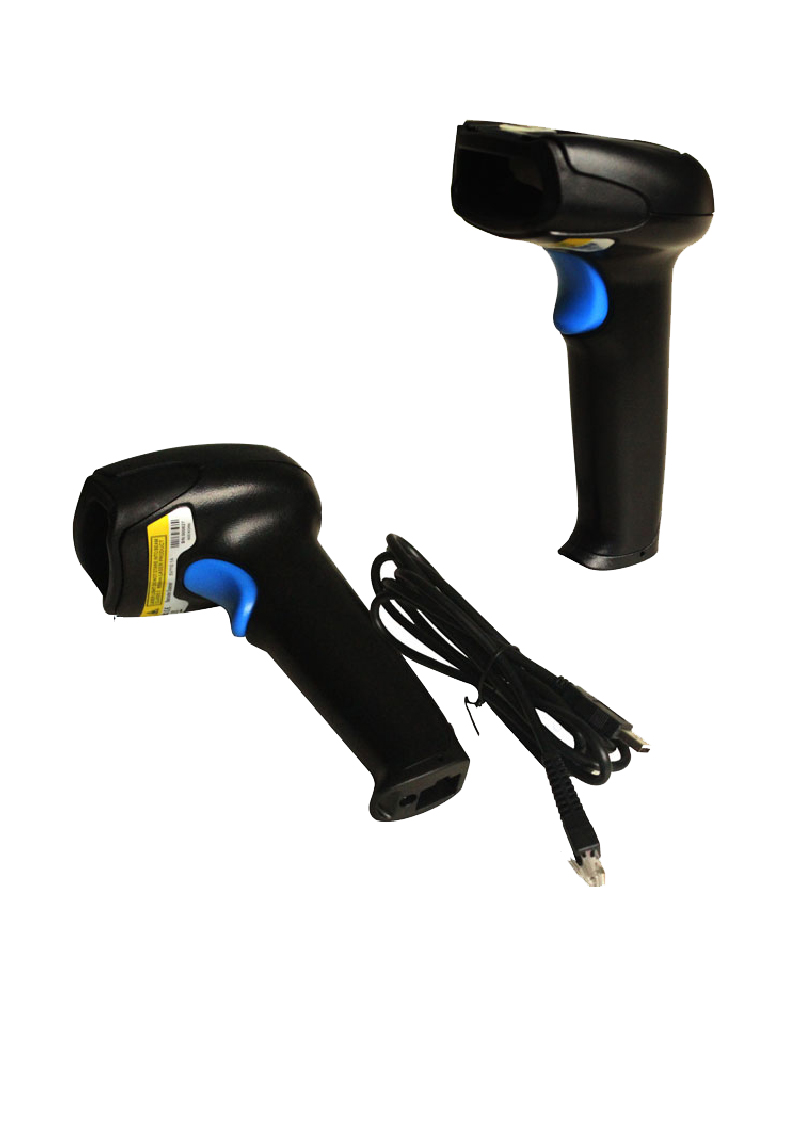

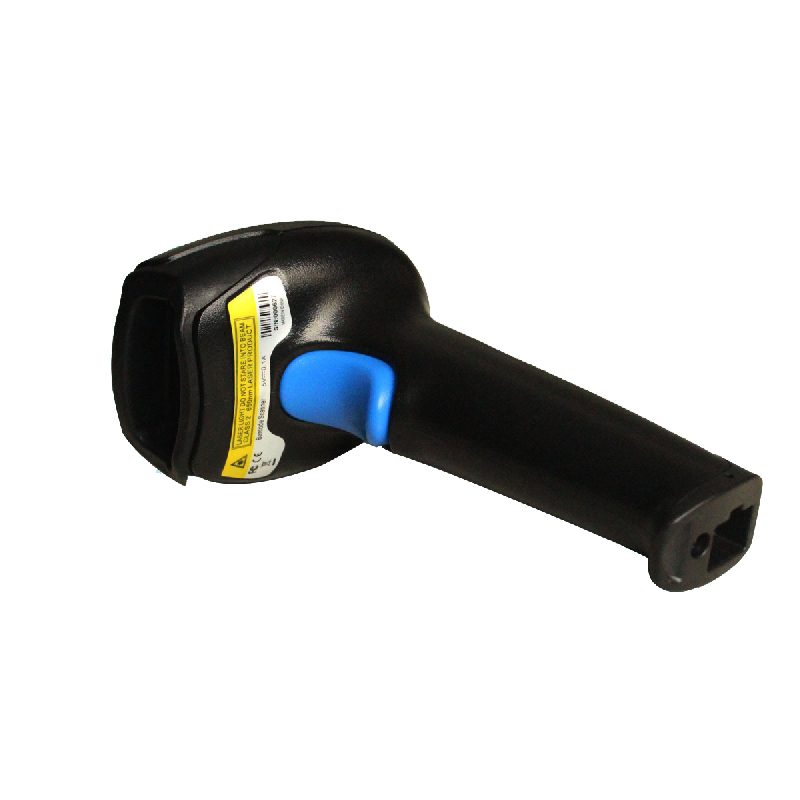

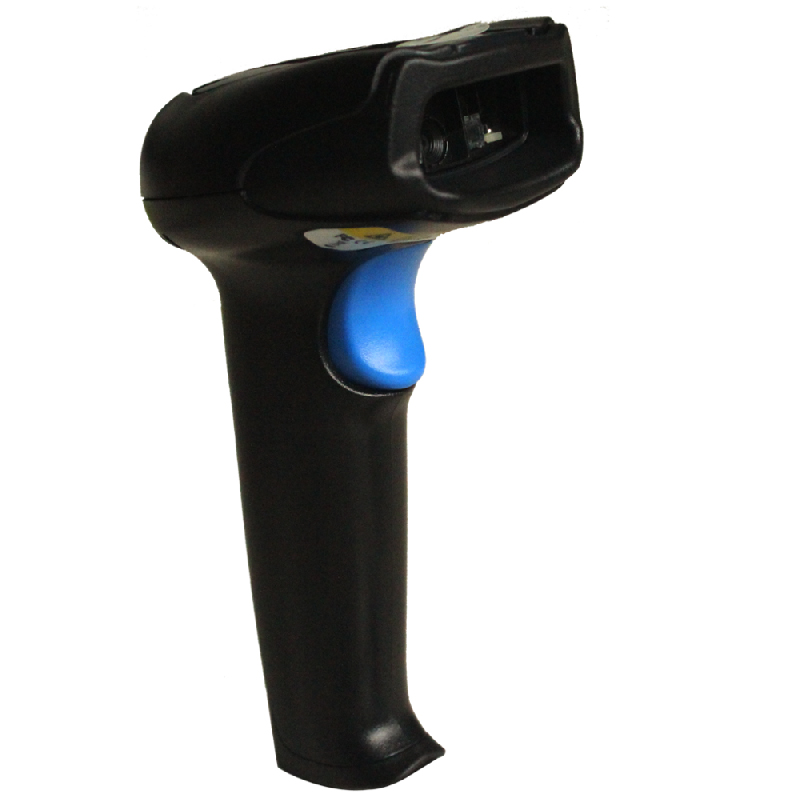

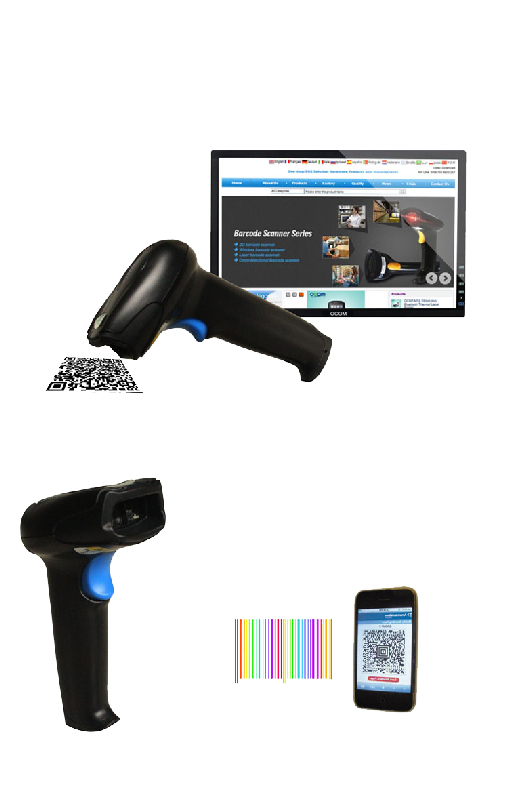

Douchette code à barre CCD 2D USB 32 bit hHandheld barcode scanner for 1D/2D
barcode with auto- scan Handheld barcode scanner for 1D/2D barcode CMOS image technology base USB interfaces supported Autoscan function FCC Part15 Class B, CE EMC Class B passed

PerformanceCharacteristics

Function

Light source

White LED

Beep

Supported

Stand

Optional

Indicator

Green LED, beep

Scan performance

Sensor

CMOS

Resolution

640*480,256 gray levels

Maximum decoding speed

13mil UPC 40cm/s

Reading angle

horizontally 50 deg; vertically 20 Deg

Precision

≥4mil

Decode capability

1D

UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code93, Code 11 (USD-8), MSI/Plessey

2D

PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, GS1 Composite

Depth of field

Code 39(5mil):50mm~120mm

Code 39(10mil):25mm~250mm

UPC/EAN (13mil):20mm~320mm

Data Matrix(7.5mil):63mm~150mm

PDF417(6.6mil):62mm~145mm

Sensitivity

Inclination   ±45° @0°Roll and 0°Skew

Rotation    ±30° @0°Pitch and 0°Skew

Deflection  ±45° @0°Roll and 0°Skew

Electrical

Interface

USB,USB COM(virtual serial port)

Input Voltage

3.3v~5v DC

Standard Power

2.0w (400mA)

Max Power

2.5w (450mA)

DC adapter

Max 5.5V 1A

LED CLASS

Class I

EMC Test

FCC part15,IEC60825-1,EN55022 Class B

User Environment

Operate Temperature

-20 deg C ~ +60 deg C  (-4 Deg F to 144 deg F)

Storage Temperature

-30 deg C ~ +70 Deg C  (-22 Deg F to 158 deg F)

Humidity

5% – 95%(non- condensation)

Drop resistance:

1.5m (5.0ft) drops to concrete

IP class

IP54

Light intensity

Working: sun lights, fluorescent lights

Physical

Dimensions

156*68*83mm

Weight

195 g (without stand)

Package dimension

48*36*47CM  (20pcs  with stand 13.5KG)

48*39*52CM  (30pcs  without stand 15KG)
